20FT-DW

20ft Double-Wing Expandable Container House

Name: 20ft Double-Wing Expandable Container House
SKU: 20FT-DW

A transport-efficient expandable house that unfolds from a 2.2 m-wide module into 38.2 m² of configurable living or project space.

Price on request

Key highlights

Expanded dimensions	5,900 × 6,480 × 2,480 mm
Internal dimensions	5,460 × 6,320 × 2,235 mm
Folded dimensions	5,900 × 2,200 × 2,480 mm
Floor area	38.2 m²
Occupancy	2-4 people
Net weight	3.5 t
Rated power	12 kW

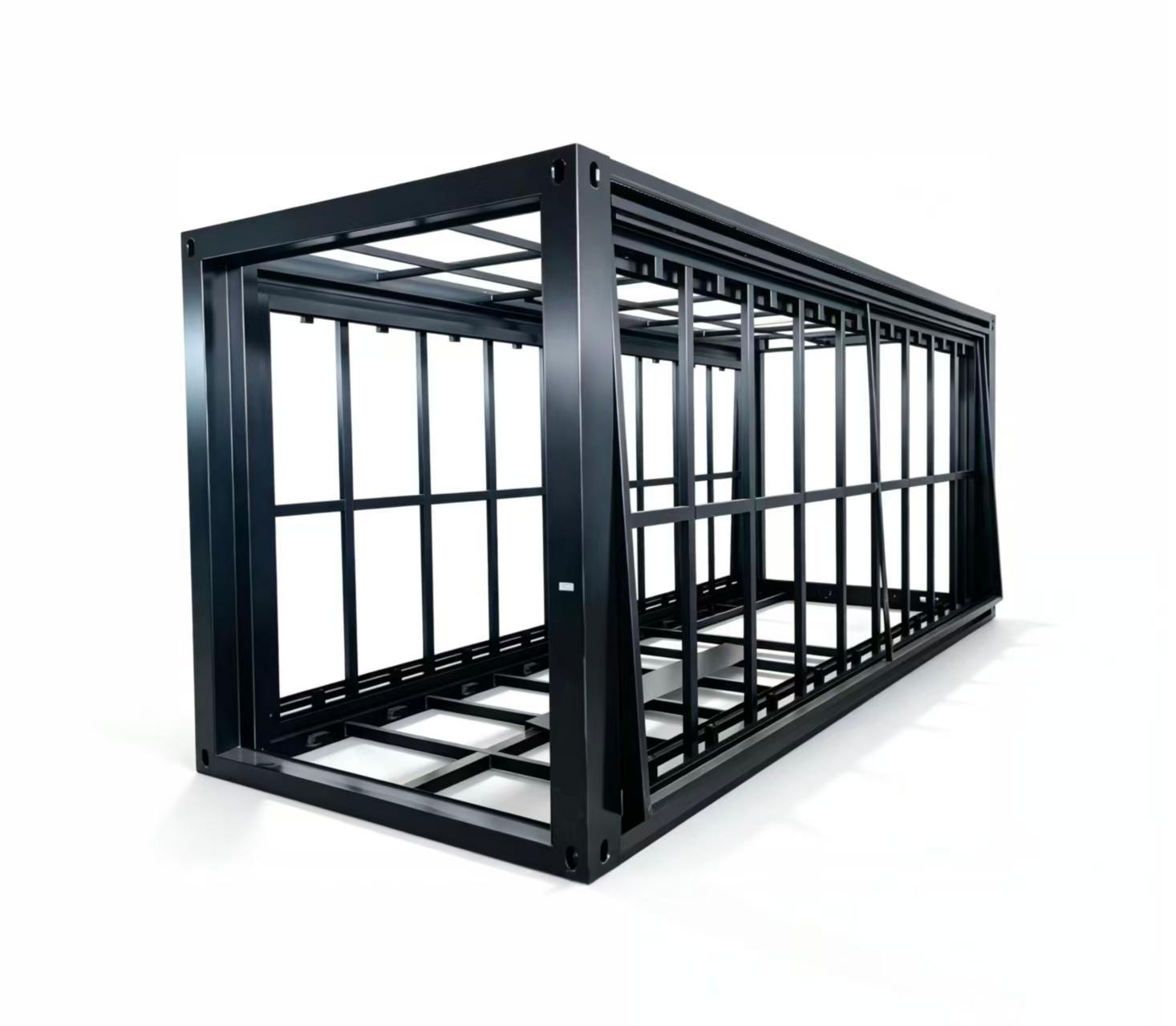

Structural system	Double-wing folding galvanized-steel structure
Main frame	80 × 100 × 2.5 mm top beam and 80 × 140 × 3.0 mm bottom beam
Wing frame	40 × 60 × 1.5 mm top frame and 40 × 60 / 80 × 80 × 1.5 mm bottom frame
Surface treatment	Electrostatic powder coating
Roof system	1.2 mm steel exterior with 50 mm EPS sandwich ceiling
Exterior wall	75 mm sandwich panels with 0.35 mm color steel on both sides and a 12 kg/m³ EPS core
Interior partition	50 mm EPS sandwich panel
Base floor	18 mm fire-resistant magnesium-oxide board
Floor finish	2.0 mm PVC or 4.0 mm SPC
Window system	930 × 930 mm uPVC sliding windows, 8 units
Electrical system	1 RCD, 4 circuit breakers, LED lighting and configurable switches and sockets
Kitchen and bathroom	L-shaped cabinet and a dry/wet-separated bathroom with complete fittings
Insulation options	EPS standard; rock wool or polyurethane optional
