40FT-DW

40ft Double-Wing Expandable Container House

Name: 40ft Double-Wing Expandable Container House
SKU: 40FT-DW

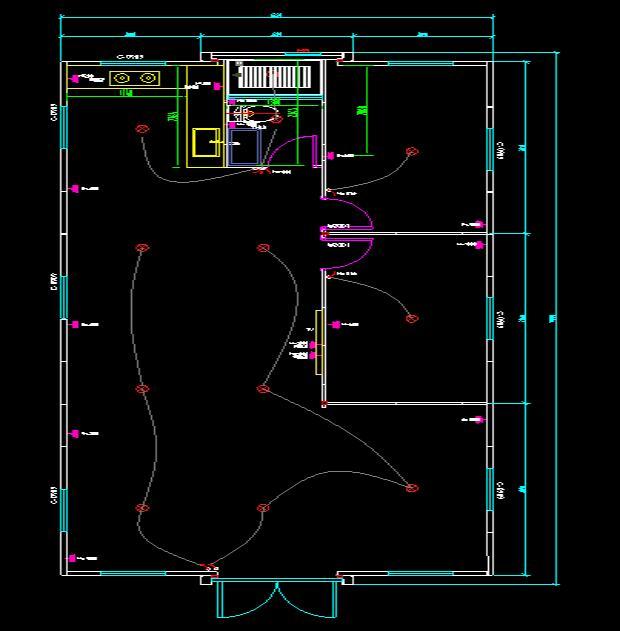

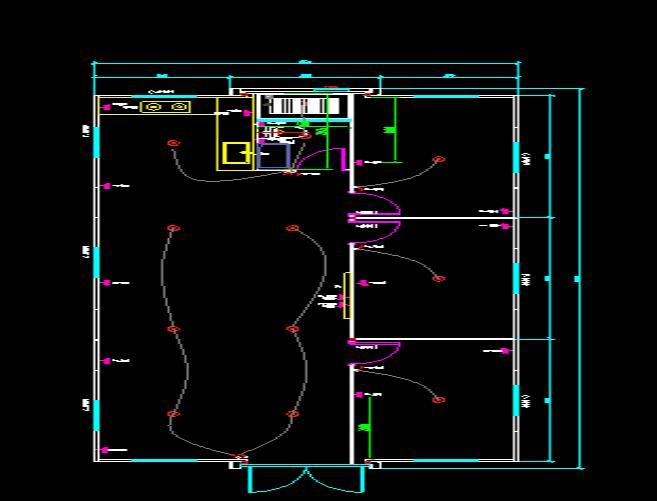

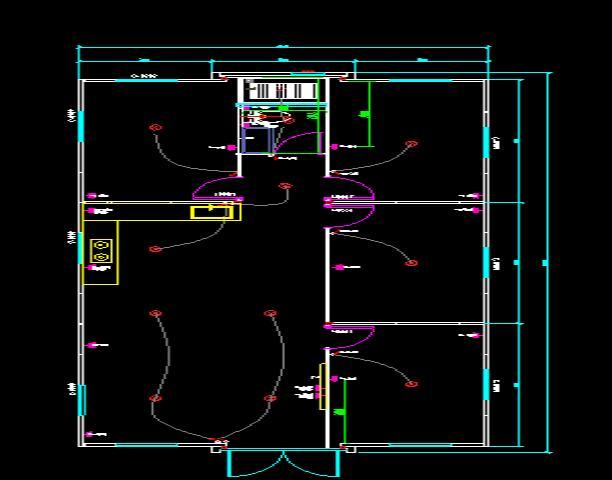

A 74.8 m² double-wing expandable house designed for 4-6 occupants, with transport-efficient folding dimensions and configurable two-, three- or four-bedroom layouts.

Price on request

Request a Quote WhatsApp us

Key highlights

Folds to 2.2 m wide for transport and expands to 6.22 m wide on site
Provides 74.8 m² of configurable space for 4-6 occupants
Galvanized frame with powder-coated corrosion protection
Layout, insulation, doors, windows and flooring can be customized

Applications

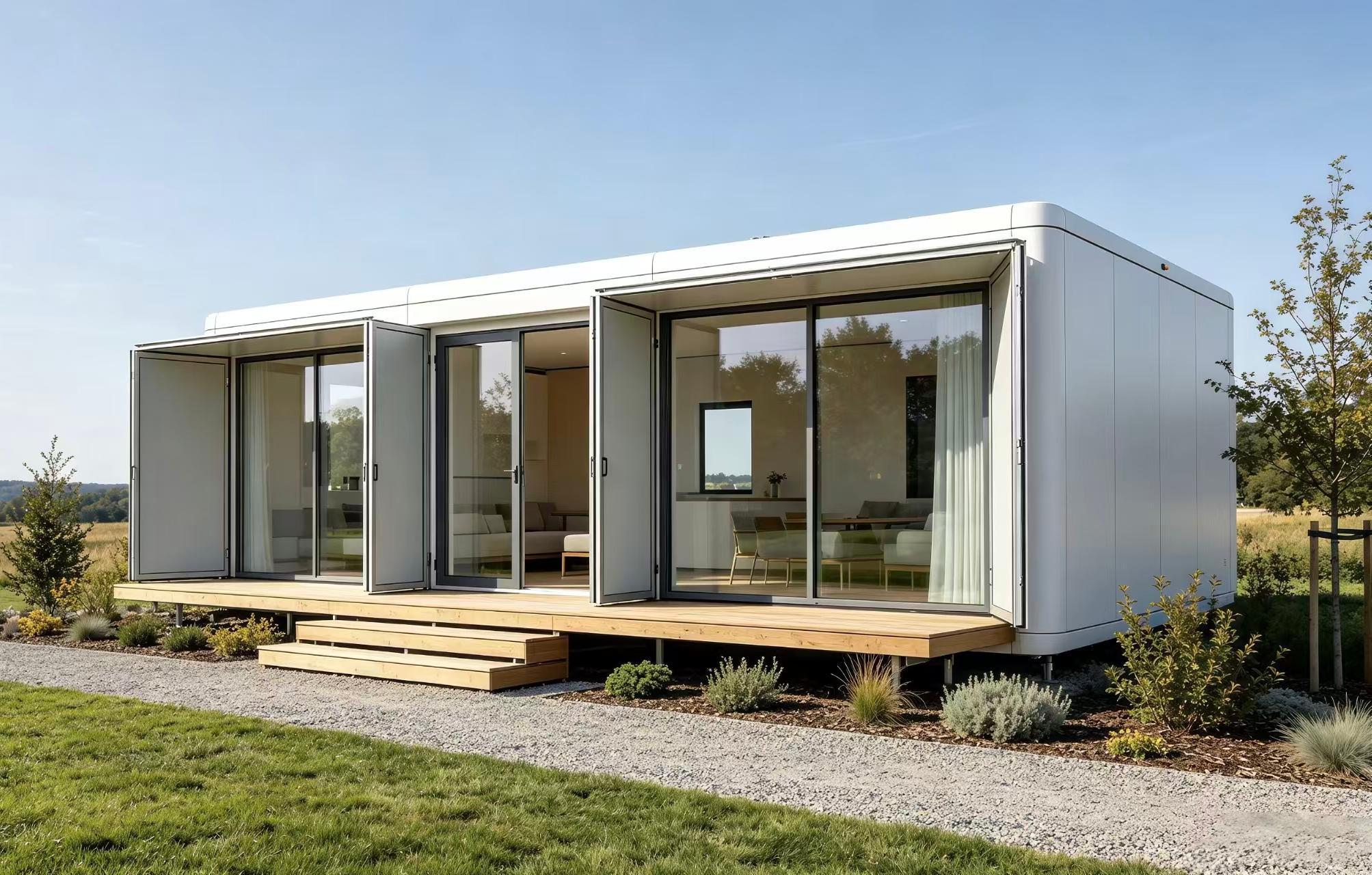

Campsites and homestays
Temporary project and site offices
Worker accommodation and emergency shelter

Specifications

Expanded dimensions	11,800 × 6,220 × 2,480 mm
Internal dimensions	11,200 × 6,060 × 2,200 mm
Folded dimensions	11,800 × 2,200 × 2,480 mm
Floor area	74.8 m²
Occupancy	4-6 people
Net weight	5.5 t
Rated power	12 kW

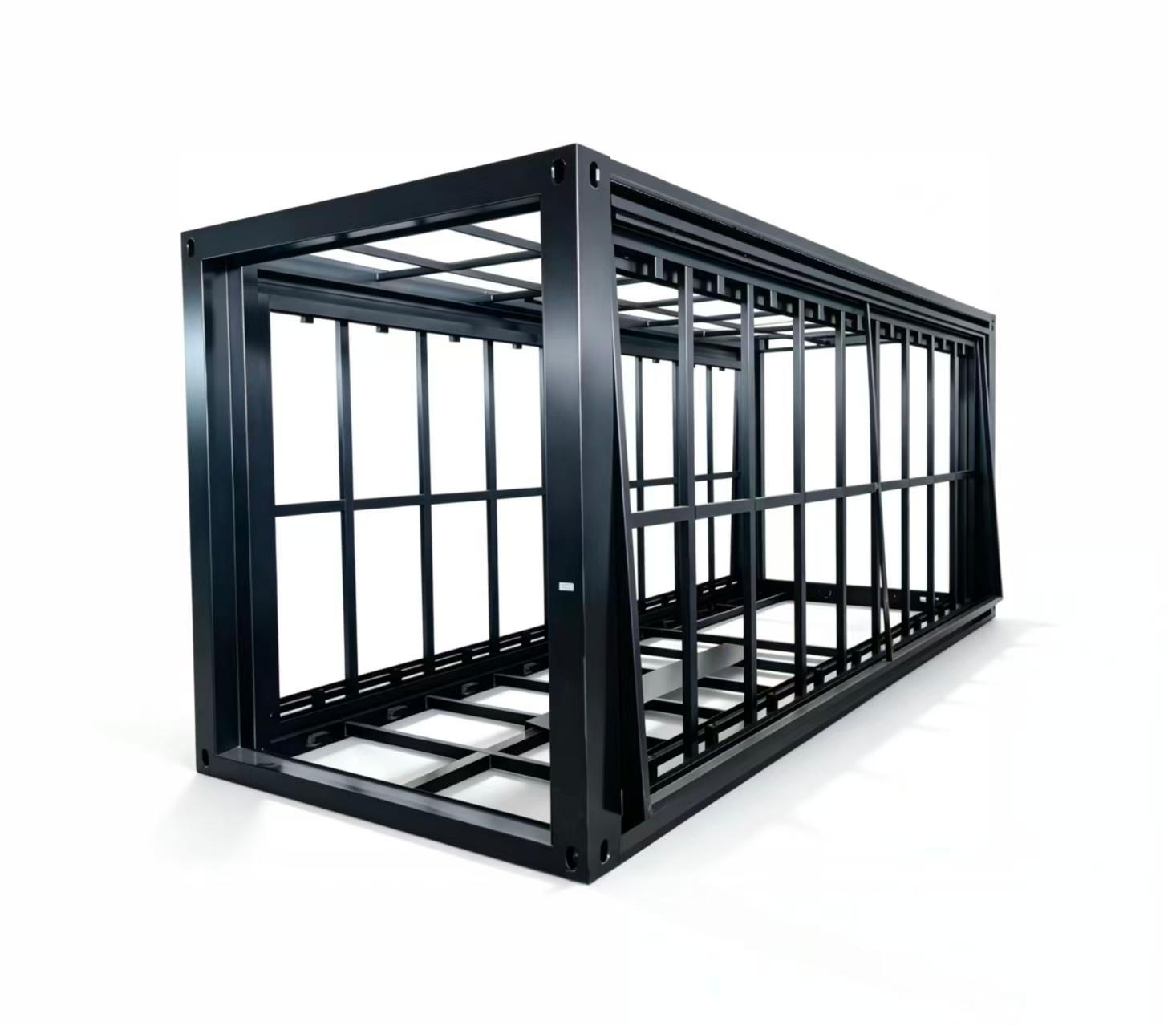

Structural system	Double-wing folding galvanized-steel structure
Main frame	80 × 140 × 3.0 mm galvanized square-tube top and bottom main beams
Wing frame	40 × 80 × 1.5 mm top frame and 70 × 80 × 1.2 / 80 × 80 × 1.5 mm bottom frame
Surface treatment	Electrostatic powder coating
Roof system	1.0 mm steel exterior with 50 mm EPS sandwich roof and ceiling panels
Exterior wall	75 mm sandwich panels with 0.35 mm color steel on both sides and a 12 kg/m³ EPS core
Interior partition	50 mm EPS sandwich panel
Base floor	18 mm fire-resistant magnesium-oxide board
Floor finish	2.0 mm PVC or 4.0 mm SPC
Window system	930 × 930 mm uPVC sliding windows, 8 units
Electrical system	1 RCD, 4 circuit breakers, LED lighting and configurable switches and sockets

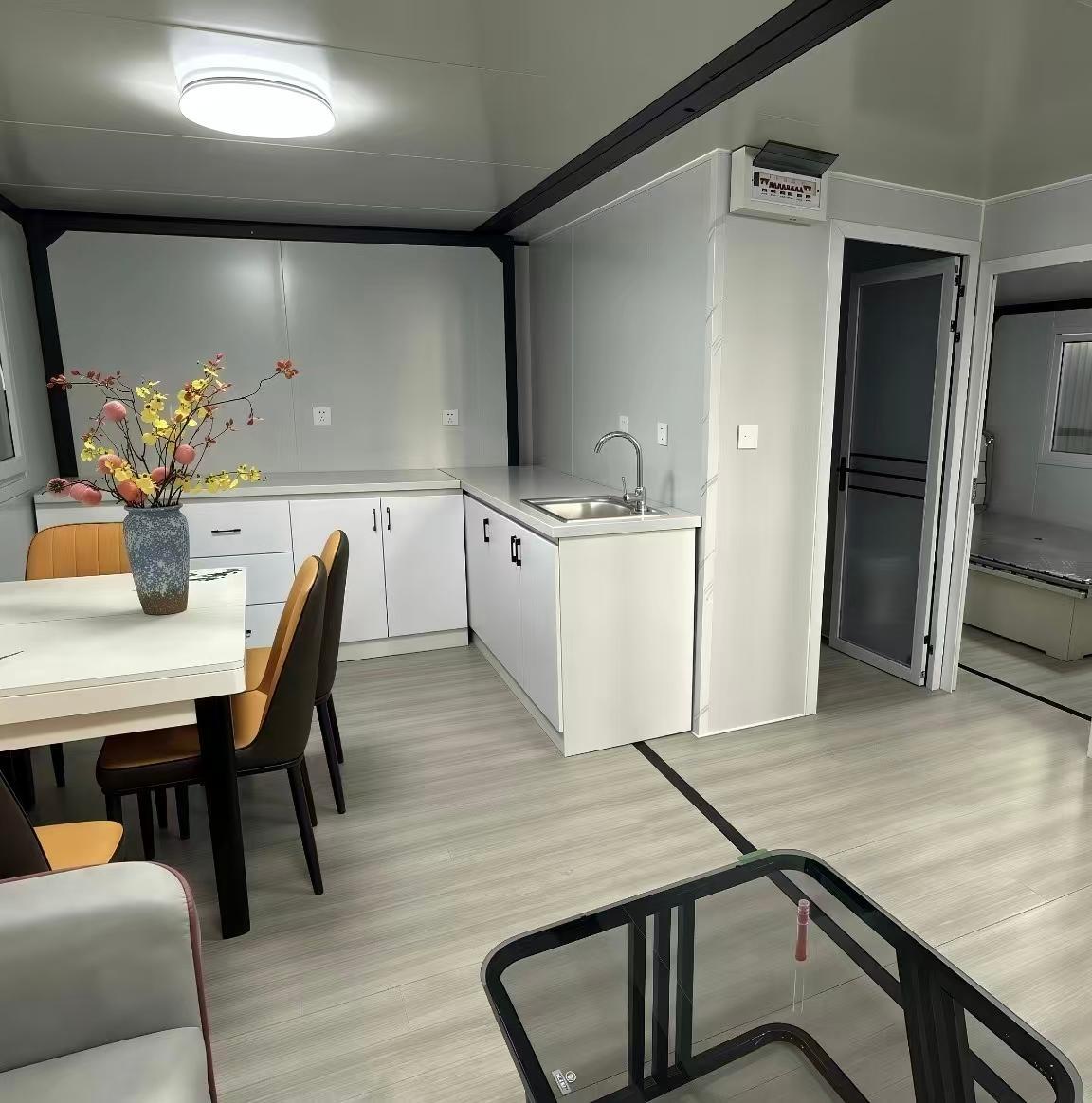

Kitchen and bathroom	L-shaped cabinet and a dry/wet-separated bathroom with complete fittings
Insulation options	EPS standard; rock wool or polyurethane optional
